12 Volt Polypropylene High Flow Pump

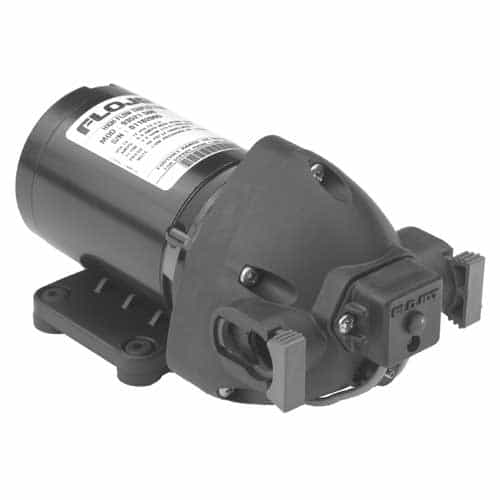

The Flojet 03521501A Electric Diaphragm Pump is part of the Triplex Hi-Flow line of pumps. This polypropylene 12 volt pump features Santoprene diaphragms and Viton check valves that allow it to be used with a wide variety of chemicals. It has a 60 PSI pressure switch, a 4 GPM maximum flow rate, and can be used with liquids up to 140° Fahrenheit. Ports include a 3/4" female NPT inlet and a 3/8" female NPT outlet.

The Flojet Triplex Hi-Flow Series pumps are designed for a wide range of applications like fluid transfer, delivery, spraying, cooling, filtration, dispensing, and pressure boosting. They are self-priming and can run dry without causing damage to the pump. Hi-Flow pumps are made for intermittent duty cycles where they run continuously for short periods of time.

Dimensions: 4.14" Wide x 4.30" Tall

Specifications:

• Voltage: 12 volt DC
• Motor Design: Permanent magnet DC
• Diaphragm Elastomer: Santoprene
• Check Valve Elastomer: Viton
• Pump Head Material: Polypropylene
• Maximum Pressure: 60 PSI switch cutoff, 50 PSI maximum running pressure
• Liquid Temperature Range: 40° to 140° Fahrenheit (4° to 60° Celcius)
• Wiring: Standard 18 AWG leads
• Port Sizes: 3/4" FNPT inlet, 3/8" FNPT outlet
• Weight: 5.05 lbs.

Features:

• Constructed from materials that handle a broad range of chemicals
• Self priming up to 8'
• Can be located above supply tank
• Can run dry for extended periods without damage
